X2-24TD-E0

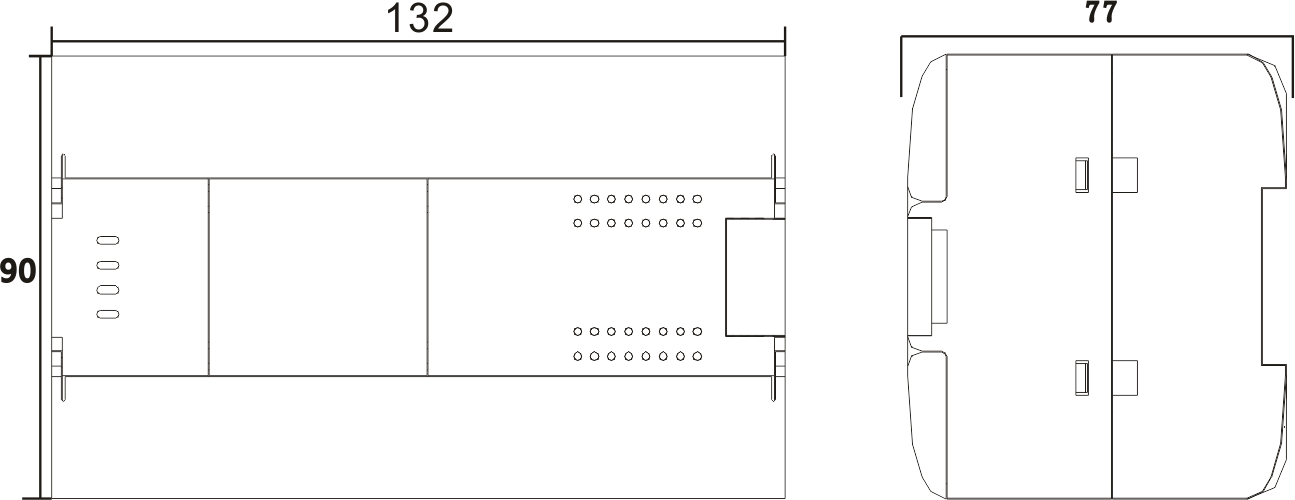

Part No.

X2-24TD-E0

Voltage

DC24V

Voltage range

DC 20.4～28.8V

Allowed voltage

continue to operate for the instantaneous power failure   less than 5ms

Fuse

60V 2A

Surge Current

12A，0.5ms below/28.8V DC

Power consumption

22W

DC24V power supply

300mA below

DC5V  internal power   supply

800mA below

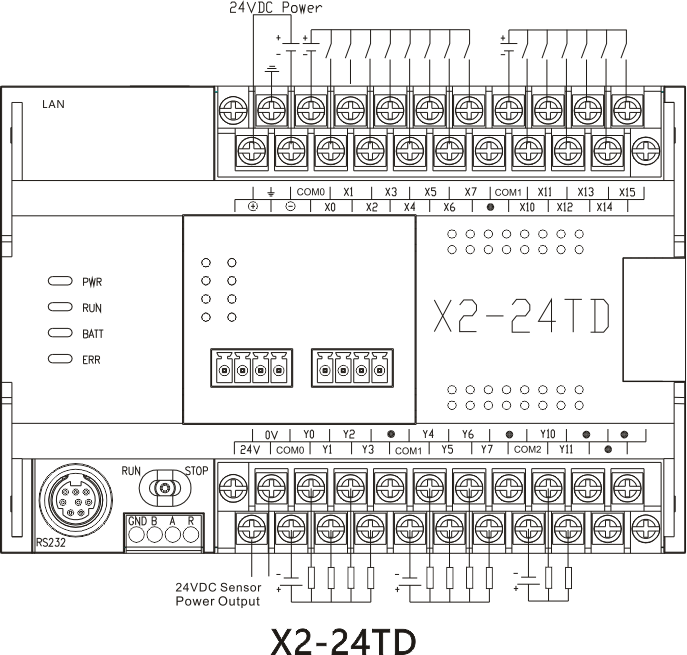

Input specifications

Input

14

Connection method

Detachable terminal block (M3 screw)

Input method

NPN/PNP

High speed counter

Single phase 200Khz(3PCS) AB phase 100Hz(3PCS)

Input signal voltage

DC power supply type: dc20.4v ～ 28.8v

Input impedance

X0-X5

3.3K

X6-X7

3.3K

X10  above

5.6K

ONInput induced current

X0-X5

More than 5mA

X6-X7

More than 5mA

X10 above

More than 4mA

OFF Input induced current

1mA below

Input response time

No more than 4.5ms

Input signal form

Voltage free contact input

Drain input: NPN open collector transistor

Source type input:PNP,Open collector transistor

Input circuit isolation

Optocoupler isolation

Display of input

When the optocoupler is driven, the   LED light on the panel is on

Output specifications

Output

10

Max frenquency

Singal end 2 Axis 200K

Connection method

Detachable terminal block (M3 screw)

Output method

NPN/PNP

External Power supply

DC5～30V

Max load

Resistive load

0.5A/single point；

inductive load

12W/DC24V

Light load

High speed：2W/DC24V、common：5W/DC24V

Min Load

5mA（DC5～24V）

Open circuit leakage current

0.1mA below /DC30V

Turn on resistance

High speed point 0.3Ω typical（Max0.6Ω）

response time

OFF→ON

High spend:5μs   below/10mA above(DC5～24V)

Ordinary :0.2ms below/200mA above (DC24V)

ON→OFF

High spend:5μs below/10mA above(DC5～24V)

Ordinary:0.2ms below/200mA   above(DC24V)

Loop isolation

Optocoupler isolation

Display of output action

When the optocoupler is driven, the LED   light on the panel is on

Shield transmission distance

500M（ordinary output）

Unshielded transmission distance

150M(ordinary output)
