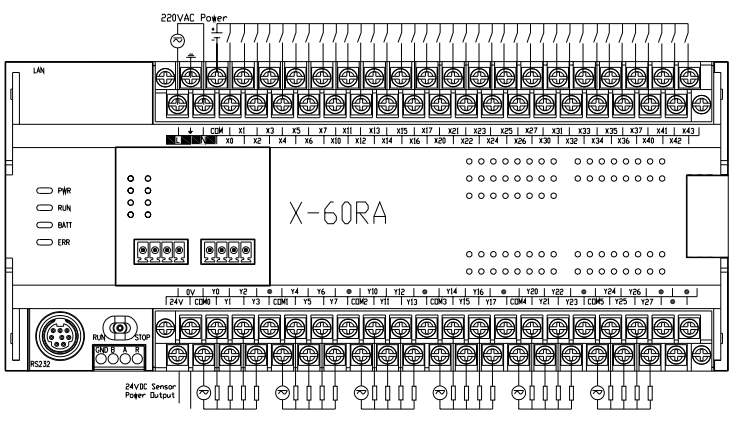

X-60RA-E0

Power supply

Working voltage（Vac）

Min

AC 100V

Typical

AC 220V

Max

AC 240V

Limited Input Voltage

AC 85V~AC100V, AC   240V~AC264V

Input Current

60/30mA（CPU，120/240VAC）

Surge Current

20A,264V AC时

Fuse

2A 60V Slowly melting

24V power supply（Max）

300mA

Digital input

Build in input

36   points fixed

Input type

PNP/NPN

Rated Voltage

24VDC，high   speed 6.4mA（X0~X5），common 4mA（X6~X27）

Maximum continuous   permissible voltage

30V DC

Surge voltage

35VDC，0.5   second

Logic 1[minimum]

15VDC，High speed 3.7mA（X0~X5），common 2.5mA（X6~X27）

Logic 0[Max]

5VDC，1mA

lowable leakage current   [maximum]

1mA

Isolution

yes

Photoelectric isolation

500VAC 1 min

High speed counter input rate

Single-phase 200KHz[3]; AB phase 100KHz[3],   supporting 4 times counting

Digital output characteristics

Build in output

24 relay output

Output type

dry contact

Rated Voltage

220VAC/24VDC

Voltage range

5～30VDC

5～250VAC

Surge Current(Max)

5A 4s 10% Duty ratio

Rated current per point   (Max)

2A

Lamp load [maximum]

30W DC/200W AC

Response time (24V, 2K   load)

10ms

Turn on resistance [contact]

0.2Ω（New   maximum）

Pulse frequency[Max]

1Hz
