PLC / SMART PLC CPU
SB CM01
Артикул: UN 288-5CM01-0AA0
аналог Siemens S7-200 SMART — SIMATIC S7-200 SMART
3,376 ₽
Плата адаптера RS485. Наименование - SB CM01
| model | SB CM01 |
| order number | UN 288-5CM01-0AA0 |
| conventional | |
| Dimensions W x H x D (mm) | 35 x 52.2 x 16 |
| weight | 18.2g |
| power consumption | 0.5W |
| Current consumption (5 V DC) | 50 mA |
| Current consumption (24 V DC) | Not applicable |
| Transmitter and Receiver (RS485) | |
| Common Mode Voltage Range | -7 V ~ +12 V, 1 s, 3 VRMS continuous |
| Cable length, shielded cable | Repeater with isolation: 1000 m, baud rate up to 187.5 k Repeater without isolation: 50 m |
| Transmitter and Receiver (RS232) | |
| Transmitter output voltage | +/-5V min at RL = 3 KΩ |
| send output voltage | +/-15V DC max |
| Cable length, shielded cable | up to 10 m |

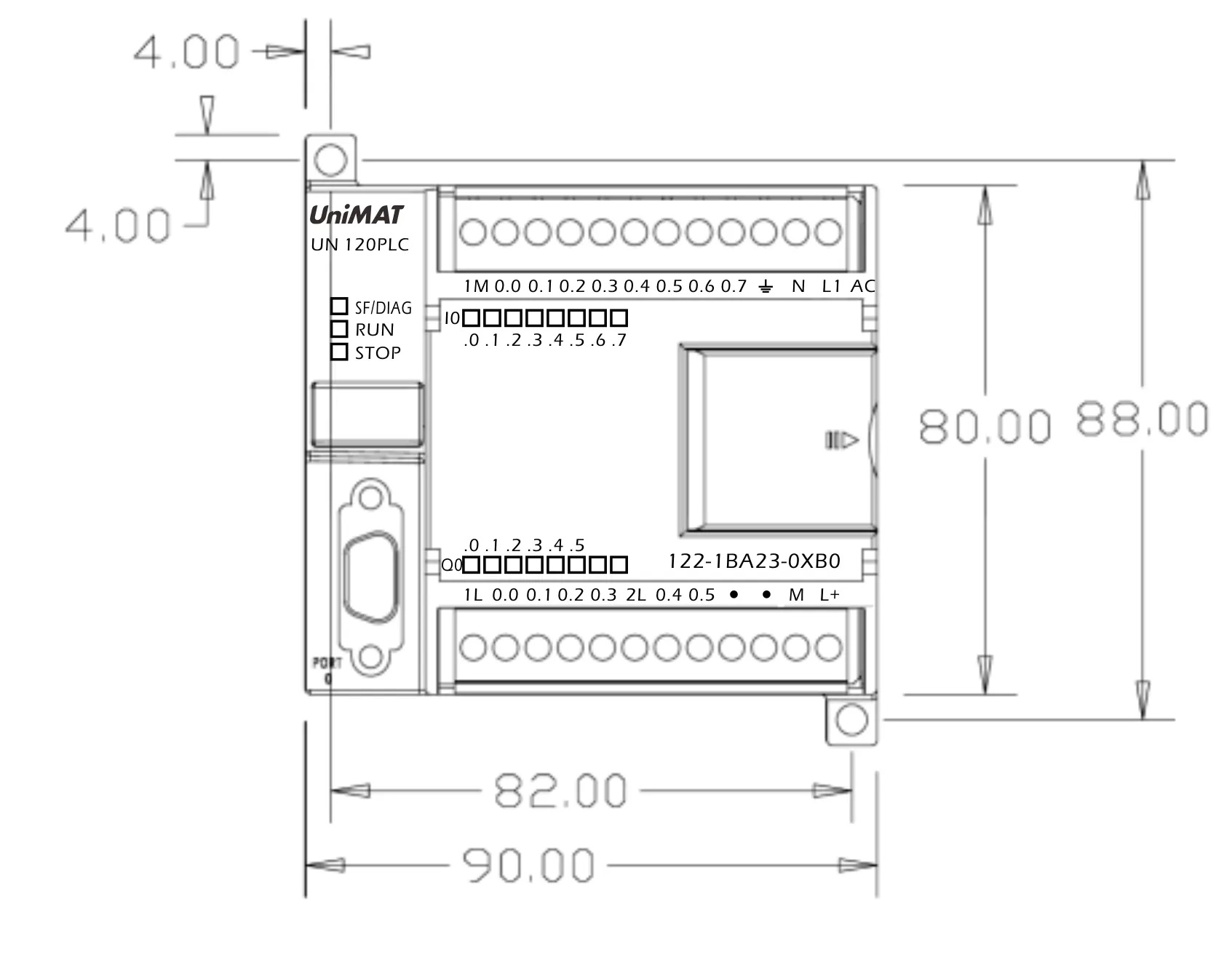

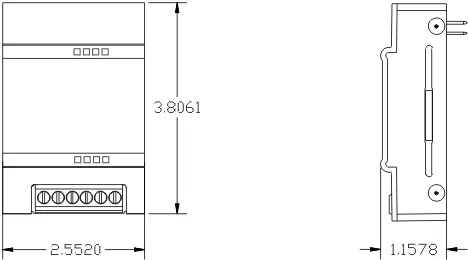

Габариты, мм
