EM QT16
Артикул: UN 288-2QT16-0AA0
аналог Siemens S7-200 SMART — SIMATIC S7-200 SMART
8,440 ₽
Модуль цифрового вывода EM QT16
Номер заказа: UN 288-2QT16-0AA0
| model | IN QT16 |
| order number | UN 288-2QT16-0AA0 |
| conventional | |
| Dimensions W x H x D (mm) | 45 x 100 x 81 |
| power consumption | 1.7W |
| Current Consumption (SM Bus) | 120 mA |
| digital output | |
| output points | 16 |
| type | Solid State - MOSFET (Source) |
| voltage range | 20.4 ~ 28.8 V DC |
| Logic 1 signal at maximum current | 20 V |
| Logic 0 signal with 10 KΩ load | 0.1 V |
| Rated current per point (maximum) | 0.75 A |
| lamp load | 5W |
| On-state contact resistance | 0.6 Ω |
| Leakage current per point | 10 μA |
| Inrush current | 8 A for 100 ms |
| overload protection | no |
| Isolation (field side and logic side) | 500 V AC for 1 min |
| isolation resistance | - |
| Insulation between breaking contacts | - |
| isolation group | 4 |
| Current per common (maximum) | 3 A |
| switch delay | Off-to-on max. 50 μs On-to-off max. 200 μs |
| Mechanical life (no load) | - |
| Contact life under rated load | - |
| Output status in STOP mode | previous value or replacement value (default is 0) |
| Simultaneously connected outputs | 16 |
| cable length | 500 m (shielded), 150 m (unshielded) |

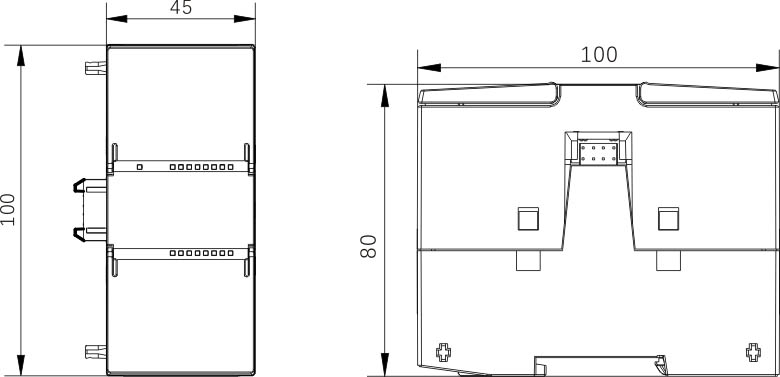

Габариты, мм
