PLC / SMART PLC CPU
EM DT32
Артикул: UN 288-2DT32-0AA0
аналог Siemens S7-200 SMART — SIMATIC S7-200 SMART
14,067 ₽

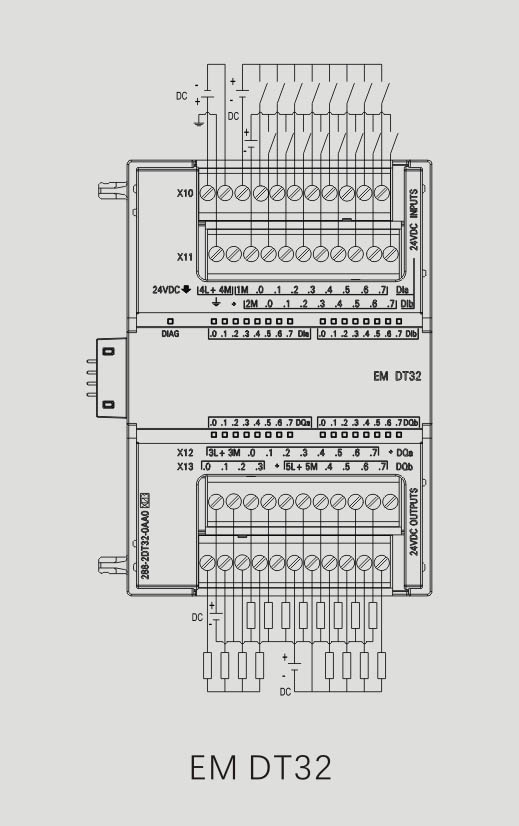

Цифровой модуль ввода/вывода EM DT32
Номер заказа: UN 288-2DT32-0AA0
| model | EM DT32 |
| order number | UN 288-2DT32-0AA0 |
| Dimensions W x H x D (mm) | 70x100x81 |
| weight | 257.3 g |
| Power consumption | 4.5W |
| Current consumption (SM bus) | 185 mA |
| Current consumption (24 V DC) | 4 mA per input used |
| - | |
| digital input | |
| Enter the number of points | 16 |
| type | sink/source |
| Rated voltage | 24 V DC at 4 mA, nominal |
| allowable continuous voltage | 30 V DC max |
| surge voltage | 35 V DC for 0.5 s |
| Logic 1 signal (minimum) | 15V DC |
| Logic 0 signal (maximum) | 5V DC |
| Isolation (field side vs logic side) | 500 V AC for 1 min |
| isolation group | 2 |
| Number of inputs switched on at the same time | 16 |
| cable length | 500 m (shielded), 150 m (unshielded) |
| digital output | |
| output points | 16 |
| type | Solid State - MOSFET (Source) |
| voltage range | 20.4 ~ 28.8V DC |
| Logic 1 signal at maximum current | 20 V DC minimum |
| Logic 0 signal with 10 KΩ load | 0.1 V DC max |
| Rated current per point (max) | 0.75A |
| lamp load | 5W |
| On-state electric shock resistance | 0.6 Ω max |
| Leakage current per point | 10 μA max |
| Inrush current | 8 A, maximum duration 100 ms |
| Overload protection | none |
| Isolation (field side vs logic side) | 500 V AC for 1 min |
| Isolation resistance | - |
| Break the insulation between electric shocks | - |
| isolation group | 3 |
| Current at each common | 6A |
| Inductor clamping voltage | - 48V |
| switch delay | up to 10 ms |
| Mechanical life (no load) | - |
| Electric shock life under rated load | - |
| Output status in STOP mode | previous value or replacement value (default is 0) |
| Number of outputs switched on at the same time | 8 |
| cable length | 500 m (shielded), 150 m (unshielded) |

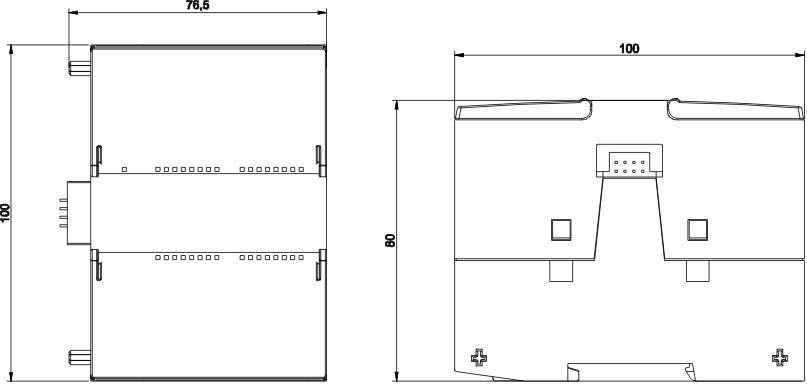

Габариты, мм
