PLC / SMART PLC CPU
EM DR32
Артикул: UN 288-2DR32-0AA0
аналог Siemens S7-200 SMART — SIMATIC S7-200 SMART
11,817 ₽

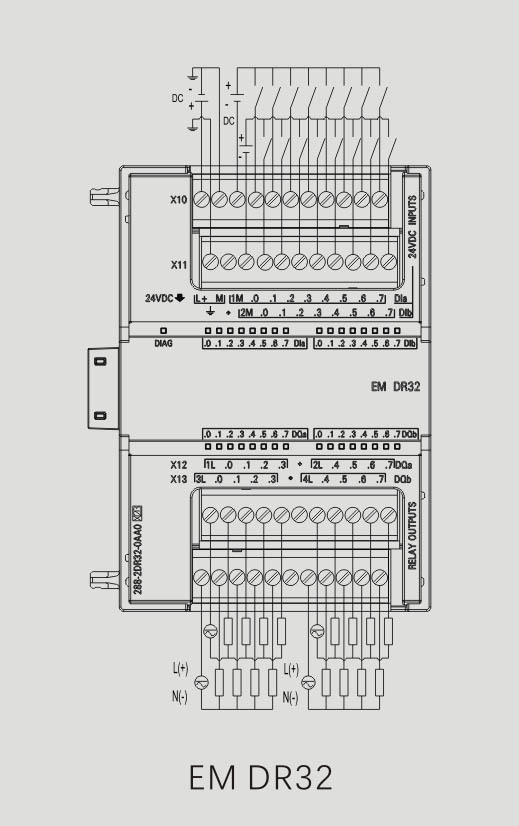

Цифровой модуль ввода/вывода EM DR32
Номер заказа: UN 288-2DR32-0AA0
| model | EM DR32 |
| order number | UN 288-2DR32-0AA0 |
| Dimensions W x H x D (mm) | 70 x 100 x 81 |
| weight | 295.4 g |
| Power consumption | 10 W. |
| Current consumption (SM bus) | 180 mA |
| Current consumption (24 V DC) | 4 mA per input used |
| 11 mA per relay coil used | |
| digital input | |
| Enter the number of points | 16 |
| type | sink/source |
| Rated voltage | 24 V DC at 4 mA, nominal |
| allowable continuous voltage | 30 V DC max |
| surge voltage | 35 V DC for 0.5 s |
| Logic 1 signal (minimum) | 15 V DC |
| Logic 0 signal (maximum) | 5 V DC |
| Isolation (field side vs logic side) | 500 V AC for 1 min |
| isolation group | 2 |
| Number of inputs switched on at the same time | 16 |
| cable length | 500 m (shielded), 150 m (unshielded) |
| digital output | |
| output points | 16 |
| type | relay, dry contact |
| voltage range | 5 ~ 30 V DC or 5 ~ 250 V AC |
| Logic 1 signal at maximum current | - |
| Logic 0 signal with 10 KΩ load | - |
| Rated current per point (max) | 2 A |
| lamp load | 30 W DC/200 W AC |
| On-state electric shock resistance | 0.2 Ω max for new devices |
| Leakage current per point | - |
| Inrush current | 7 A when the contacts are closed |
| Overload protection | none |
| Isolation (field side vs logic side) | 1500 V AC for 1 min (coil and contacts) none (coil and logic side) |
| Isolation resistance | 100 MΩ minimum for new devices |
| Break the insulation between electric shocks | 750 V AC for 1 min |
| isolation group | 4 |
| Current at each common | 8 A |
| Inductor clamping voltage | - |
| switch delay | Off to On up to 50 µs On to Off up to 200 µs |
| Mechanical life (no load) | 10,000,000 open/close cycles |
| Electric shock life under rated load | 100,000 open/close cycles |
| Output status in STOP mode | previous value or replacement value (default is 0) |
| Number of outputs switched on at the same time | 16 |
| cable length | 500 m (shielded), 150 m (unshielded) |

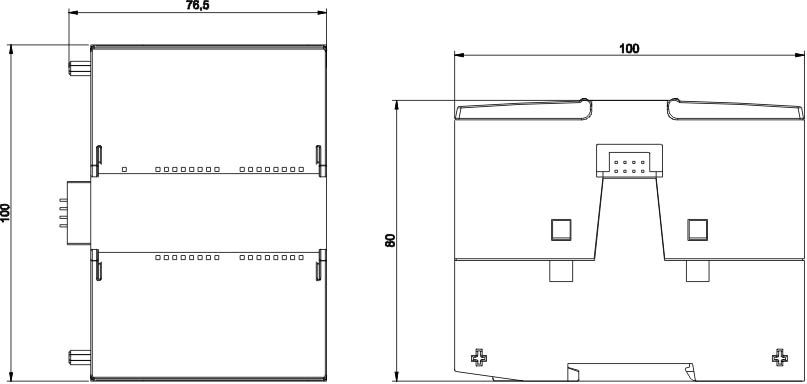

Габариты, мм
