PLC / SMART PLC CPU
EM DR08
Артикул: UN 288-2DR08-0AA0
аналог Siemens S7-200 SMART — SIMATIC S7-200 SMART
4,689 ₽
Цифровой модуль вывода EM DR08
Номер заказа: UN 288-2DR08-0AA0
| model | EM-DR08 |
| order number | UN 288-2DR08-0AA0 |
| conventional | |
| Dimensions W x H x D (mm) | 45 x 100 x 81 |
| power consumption | 4.5W |
| Current Consumption (SM Bus) | 120 mA |
| digital output | |
| output points | 8 |
| type | relay, dry contact |
| voltage range | 5 ~ 30V DC or 5 ~ 250V AC |
| Logic 1 signal at maximum current | - |
| Logic 0 signal with 10 KΩ load | - |
| Rated current per point (maximum) | 2.0A |
| lamp load | 30W DC/200W AC |
| On-state contact resistance | 0.2 Ω max for new devices |
| Leakage current per point | - |
| Inrush current | 7 A with contacts closed |
| overload protection | no |
| Isolation (field side and logic side) | 1500 V AC for 1 min (coil and contact) None (coil and logic side) |
| isolation resistance | 100 MΩ minimum for new devices |
| Insulation between breaking contacts | 750 V AC for 1 min |
| isolation group | 2 |
| Current per common (maximum) | 8A |
| switch delay | up to 10 ms |
| Mechanical life (no load) | 10,000,000 open/close cycles |
| Contact life under rated load | 100,000 open/close cycles |
| Output status in STOP mode | previous value or replacement value (default is 0) |
| Simultaneously connected outputs | 8 |
| cable length | 500 m (shielded), 150 m (unshielded) |

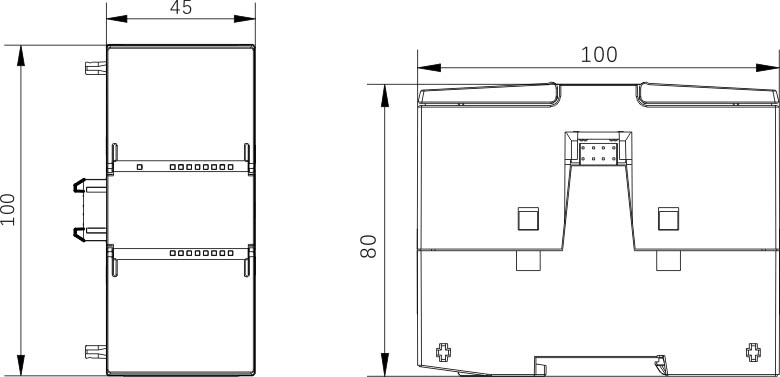

Габариты, мм
