EM AQ02
Артикул: UN 288-3AQ02-0AA0
аналог Siemens S7-200 SMART — SIMATIC S7-200 SMART
15,300 ₽
Аналоговый модуль вывода EM AQ02
Номер заказа: UN 288-3AQ02-0AA0
| model | EM AQ02 |
| order number | UN 288-3AQ02-0AA0 |
| conventional | |
| Dimensions W x H x D (mm) | 45 x 100 x 81 |
| weight | 147.1g |
| power consumption | 1.5 W (no load) |
| Current Consumption (SM Bus) | 60 mA |
| Current consumption (24 V DC) | 50 mA (no load) |

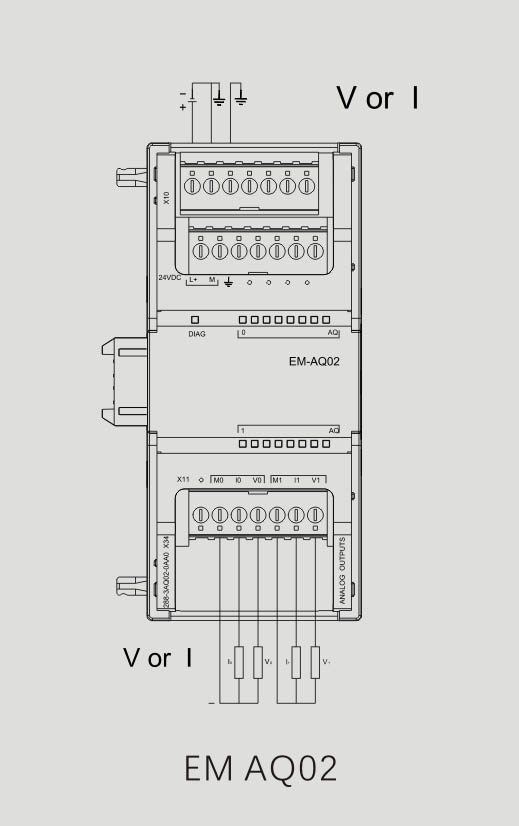

| analog output | |
| Output | 2 |
| type | voltage or current |
| scope | ±10V or 0 ~ 20mA |
| resolution | Voltage mode: 11 bits + sign bit Current mode: 11 bits |
| Full-Scale Range (Data Words) | Voltage: -27,648 ~ 27,648 |
| Accuracy ( 25˚C /0 ~ 55˚C ) | ±0.5 %/ ±1.0 % of full scale |
| Output status in STOP mode | previous value or replacement value (default is 0) |
| Isolation (field side and logic side) | none |
| Cable length (maximum) | 100 m, shielded twisted pair |
| diagnosis | |
| overflow/underflow | √ |
| Short to ground (voltage mode only) | √ |
| Open Circuit (Current Mode Only) | √ |
| 24 V DC low voltage | √ |

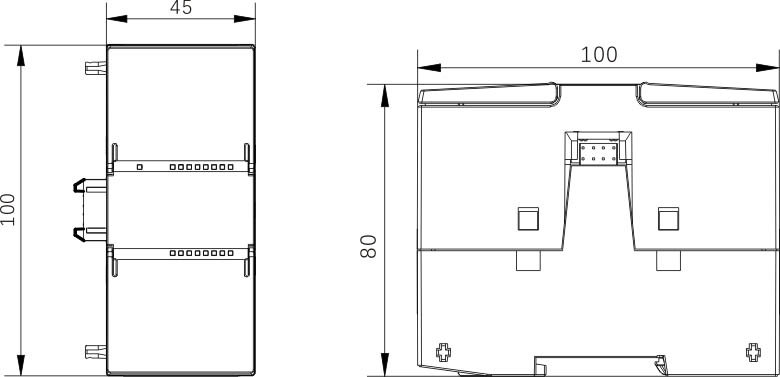

Габариты, мм
