EM AE08

physical properties

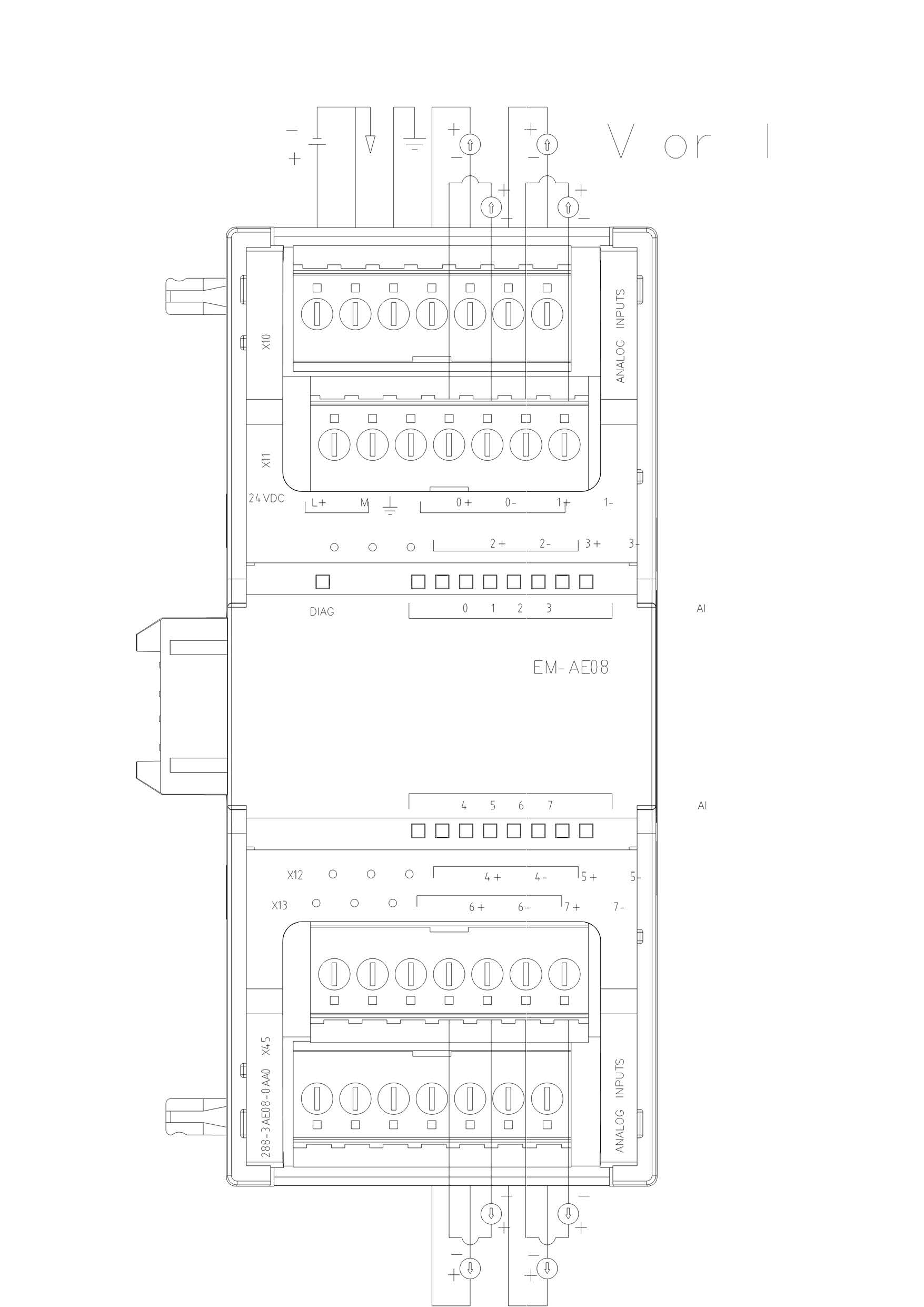

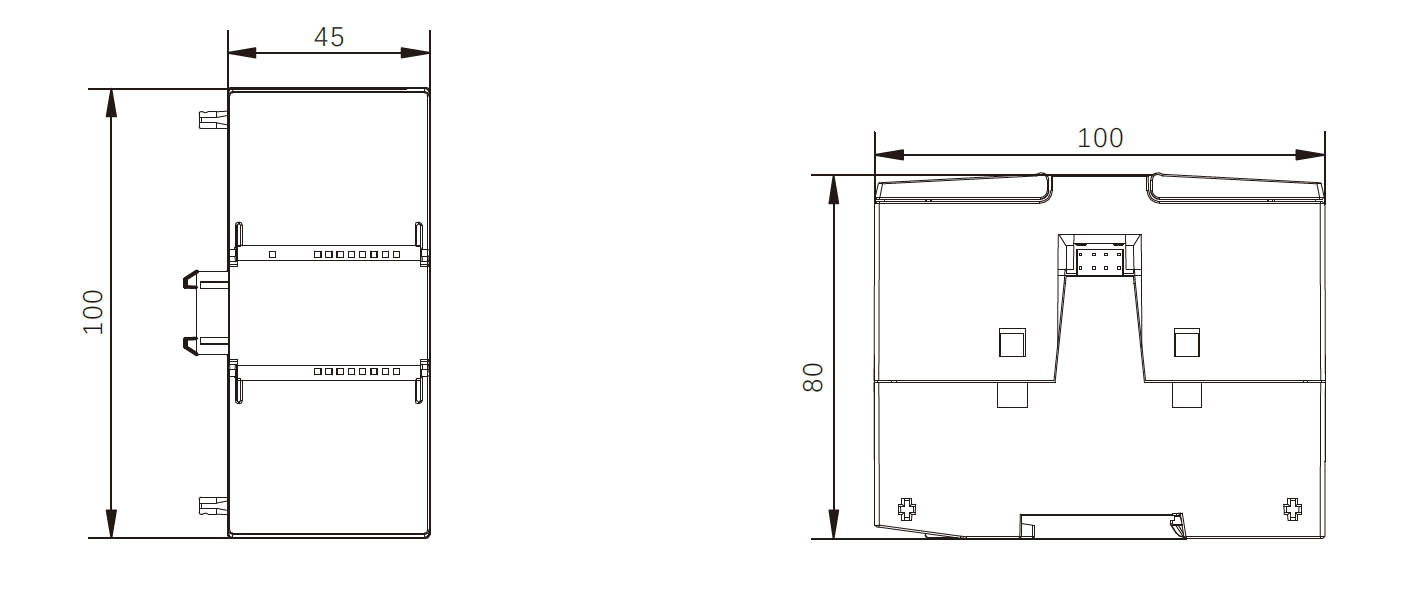

Dimensions W x H x D (mm)

45 x 100 x 81

power consumption

2W (no load)

Power Characteristics

Rated voltage

DC 24V

Input voltage

DC 20.4 to 28.8V

24V input current

Less than 100mA (no load)

electric shock

12A at 28.8V DC

Insurance

0.75A 60V slow blow

SM bus current

Less than 120mA (single module)

Analog Input Characteristics

Local integrated analog input points

8 inputs

Analog input type

Analog differential input

Voltage Input Range (Bipolar)

±10V，±5V，±2.5V

Current input range

0～20mA

resolution

12 bits

basic error

( normal temperature 25°C/limit -0°C~50°C)

Voltage input 0.1%FS/0.2%FS

Current input 0.2%FS/0.3%FS

Voltage data range

-27648 ～+27648

Current data range

0 ～+27648

overshoot

Voltage: 27,649 ~ 32,511/-27,649 ~ -32,512

Current: 27,649 ~ 32,511/-4864 ~ 0

overflow

Voltage: 32,512 ~ 32,767/-32,513 ~ -32,768

Current: 32,512 ~ 32,767/-4,865 ~ -32,768

input resistance

≥2MΩ voltage input

250Ω current input

Isolation (Field to Logic)

>500V

common mode rejection

40dB , DC to 60Hz

common mode voltage

Signal voltage + common mode voltage ≤ 12V

input voltage

±30V DC (withstanding voltage)

input current

40mA

diagnosis

Overflow/underflow; 24VDC low voltage

Cable length (maximum)

100m , shielded twisted pair

Environment and basic parameters

Working temperature

0 °C～60°C (horizontal installation), 0°C～50°C (vertical installation)

Transport ambient temperature

-20 ℃～80℃

Ambient relative humidity

5 ~ 90%, non-condensing (RH level 2, in line with IEC61131-2)

degree of protection

IP20 , comply with IEC60529
