PLC / SMART PLC CPU
EM AE04
Артикул: UN 288-3AE04-0AA0
аналог Siemens S7-200 SMART — SIMATIC S7-200 SMART
7,127 ₽
Аналоговый модуль ввода EM AE04
Номер заказа: UN 288-3AE04-0AA0
| model | EM AE04 |
| order number | UN 288-3AE04-0AA0 |
| conventional | |
| Dimensions W x H x D (mm) | 45 x 100 x 81 |
| weight | 147g |
| power consumption | 1.5 W (no load) |
| Current Consumption (SM Bus) | 80 mA |
| Current consumption (24 V DC) | 40 mA (no load) |
| analog input | |
| Input channels | 4 |
| type | Voltage or current (differential): 2 can be selected as a group |
| scope | ±10 V, ±5 V, ±2.5 V, or 0 ~ 20 mA |
| Full-Scale Range (Data Words) | -27,648 ~ 27,648 |
| Overshoot/Undershoot Range (data word) | Voltage: 27,649 ~ 32,511/-27,649 ~ -32,512 Current: 27,649 ~ 32,511/-4864 ~ 0 |
| Overflow/Underflow (data word) | Voltage: 32,512 ~ 32,767/-32,513 ~ -32,768 Current: 32,512 ~ 32,767/-4,865 ~ -32,768 |
| resolution | Voltage mode: 12 bits + sign bit Current mode: 12 bits |
| Maximum pressure/current resistance | ±35V/±40mA |
| smooth | none, weak, medium or strong |
| noise suppression | 400, 60, 50 or 10 Hz |
| Isolation (field side and logic side) | none |
| Accuracy ( 25˚C / 0 ~ 55˚C ) | Voltage mode: ±0.1 %/±0.2 % of full scale Current mode: ±0.2 %/±0.3 % of full scale |
| common mode rejection | 40dB, DC to 60Hz |
| Working signal range | Signal plus common mode voltage must be less than +12 V and greater than -12 V |
| Cable length (maximum) | 100 m, shielded twisted pair |
| diagnosis | |
| overflow/underflow | √ |
| 24 V DC low voltage | √ |

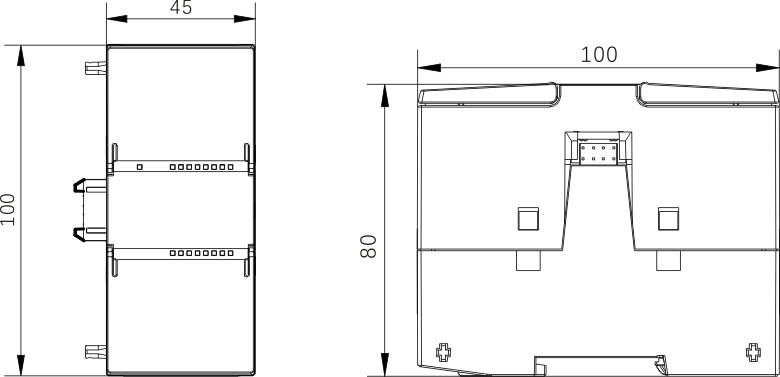

Габариты, мм
