PLC / SMART PLC CPU
CPU ST60
Артикул: UN 288-1ST60-0AA0
аналог Siemens S7-200 SMART — SIMATIC S7-200 SMART
19,132 ₽
UN 200 SMART PLC — это небольшой ПЛК с высокой производительностью, высокой интеграцией и очень привлекательной ценой, независимо разработанный Evian Automation.
Для ПЛК UN SMART имеются в наличии различные типы модулей ЦП с общим числом входов/выходов до 60. Он имеет богатые функции связи и управления перемещением, а так же мощный набор инструкций, достаточных для решения задач по автоматизации или управлению технологическими процессами с небольшими и/или средними потребностями в оборудовании .
| model | CPU ST60 |
| order number | UN 288-1ST60-0AA0 |
| Dimensions W x H x D (mm) | 175×100×81 |
| Current supply (24 V DC) | 300mA max. |
| Digital Input Current Consumption (24 V DC) |
4 mA per input used |
| CPU characteristics | |
| user memory | 30 KB program memory/20 KB data memory/up to 10 KB retentive memory |
| Onboard digital I/O | 36 points input/24 points output |
| module extension | Up to 6 expansion modules |
| Signal Board Expansion | Up to 1 signal board |
| high speed counter | 6 total |
| Single phase: 6 channels 200 KHz | |
| AB phase: 4 channels 100 KHz | |
| communication | |
| Number of ports | Ethernet: 1 |
| Serial Ports: 1 (RS485) | |
| Expansion port: optional 485 BD board | |
| programming device | Serial port: 1 connection, Ethernet port: 1 connection |
| CPU (PUT/GET) | Ethernet: total number of client and server connections 6 |
| power input | |
| voltage range | 20.4 ~ 28.8VDC |
| Power Output | |
| voltage range | 20.4 ~ 28.8VDC |
| Rated output current (maximum) | 300 mA |
| digital input | |
| Enter points | 36 |
| type | sink/source |
| Rated voltage | Normal DI point: 24 V DC at 4 mA, rated value High-speed DI point: 24 V DC at 6.5 mA, rated value |
| Allowable continuous voltage | 30 V DC max. |
| Logic 1 signal (minimum) | I0.0-I0.3: 4VDC at 12.75mA I0.6-I1.1: 15VDC at 3.7mA Others: 15VDC at 2.5mA |
| Logic 0 signal (maximum) | I0.0-I0.3: 1VDC at 1mA Other inputs: 5VDC at 1mA |
| filter time | Individually selectable for each channel (points I0.0 to I1.5): 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8µs 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8ms Individually selectable for each channel Choices (I1.6 and greater points): 0, 6.4, 12.8ms |
| digital output | |
| output points | twenty four |
| type | Solid State - MOSFET (Source) |
| voltage range | 20.4 ~ 28.8VDC |
| Rated current per point (maximum | 0.5 A+Q21:W3B12:W38 |

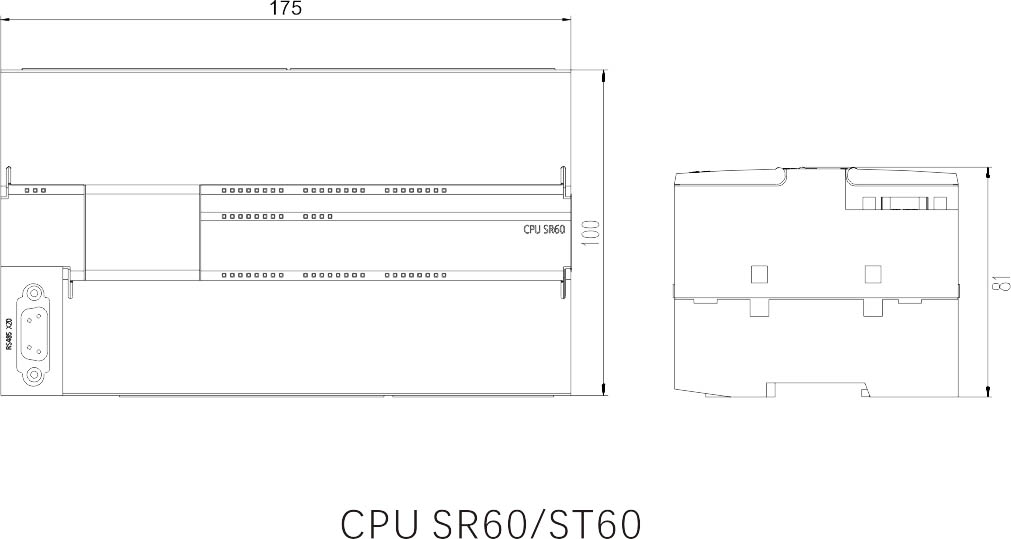

Габариты, мм
