SM332 4AO

Model

SM332

4AO

Product  Description

4AO;

 Resolution:12bits; High-accuracy

Power consumption

·From bus current consumption

40mA

·From L+

40mA

·Power loss

3W

Number of analog outputs

4

Load voltage+rated value

24V

Shielded cable length,Max

200m

Voltage output,

Max,short circuit Current

Yes

Voltage output,

Short circuit current(Max)

25mA

Voltage output,

Open-circuit current,Max

18V

Load impedance

·Voltage outputs,Min

1KΩ

·current outputs,Max

500Ω

Output ranges

·voltage

±10V,0~10V,1~5V

·current

±20mA,0~20mA,4~20mA

D/A resolution

12bit

conversion time(per channel)

Max:0.8ms

Setting time

·Resistive loads

0.1ms

·Capacitive loads

3.3ms

·Inductive loads

0.5ms

Output cross talk

>40dB

Tolerance(Over entire temperature range)

·Voltage output

±0.5%

·Current output

±0.6%

Diagnostic interrupt

None

Group fault error

Red LED

Isolution tested for contact

·Between channels and backplane bus

Yes

·Between channels and load voltage L+

Yes

Front connector

20-pin

Dimensions(W x H x D)(mm)

40×125×120

Order Number

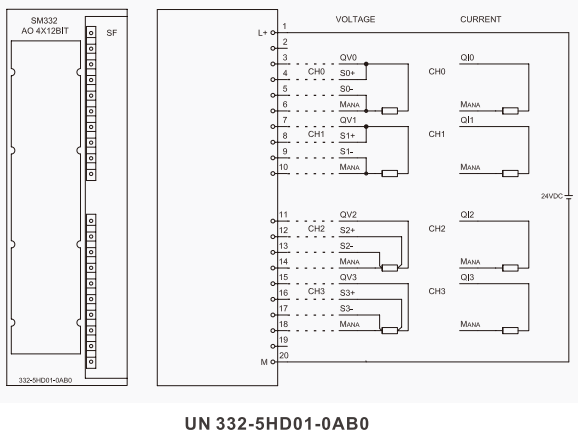

UN 332-5HD01-0AB0
