PLC / 200 Series
EM231 16 inputs Thermocouple
Артикул: UN 231-7PL22-0XA0
аналог Siemens S7-200 — SIMATIC S7-200
- Модуль температуры 200-ой серии
- 16 аналоговых входов
- Термопары; разрешение: 16 bits
- Опто-изоляция. Сильная и устойчивая защита от помех
Model | EM231 16 inputs Thermocouple |
Product Description | 16AI; Thermocouple temperature measurement modules; Resolution:16bits Optical isolation; high immunity;stable |
Technical Specification | |
From bus current consumption | 110mA |
From L+ current consumption | 40mA |
Power loss | 2.1W |
Number of analog inputs | 16 |
Signal input type· | loating Thermocouple |
Common-mode rejection | >120dB@120V AC |
Wire loop resistance(Max) | 100 Ω |
Module update time | 1030ms |
Data word format | Voltage:+27648~+27648 |
Input range | TC Type(choice one)· J,K Voltage range:±80mV |
Measuring principle | Sigma→delta |
Resolution | 15+1 Sign bit |
Address interval | VW |
Basic error | 0.1%FS |
Isolation (field to logic) | >3000V |
24VDC supply voltage range | 20.4~28.8V DC |
Dimensions(W x H x D)(mm) | 137.5×80×62 |

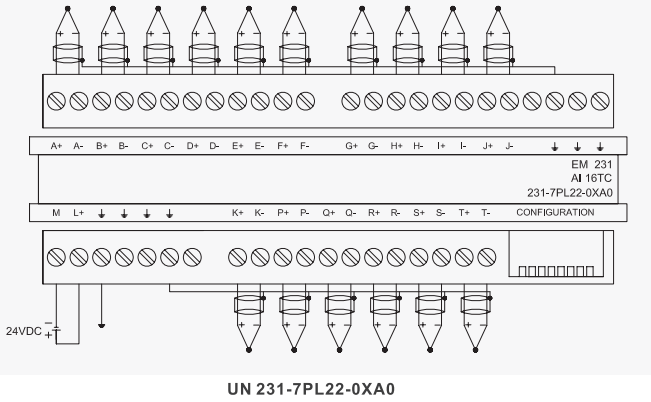

Order Number | UN 231-7PL22-0XA0 |
