Сервопривод US100 использует самый передовой алгоритм управления для реализации контура электрического тока, контура скорости, контура управления положением, с хорошей самонастраивающейся способностью. US100 может быть сконфигурирован с несколькими двигателями.
Области применения (высокая скорость работы и принятия решений): машина с ЧПУ, печатная машина, упаковочная машина, бумагоделательная машина, текстильное оборудование, промышленный робот и автоматическая производственная линия.
US100 Servo Drive use the most advanced control algorithm to realize the electric current loop,speed loop,position loop control,with good self-adapted ability, can be configured with multi motors.
Widely application in the area of High actuation and high speed,such as NC machine,printing machine,packing machine, paper machine,textile machinery, industrial robot and automatic production line, etc.
- Wide speed adjustment range, the highest speed can be 6000r/min.
- Overload capacity: the servo drive has the characteristics of super overload ability and anti-load perturbation ability and high startup torque
- Position control mode,pulse+direction;AB quadrature pulse;CW/CCW pulse control
- Multi Zero return function, drive the device automatically to accomplish original point fix
- Gain switch,satisfied with the different working requirement,more accurate and fast
- Internal simple motion controller
- Built-in 8 section position related control parameters,include each section position,speed, inner position instruction muilt-section execute choice and coordinate digital input port signal to make the position change control
- Internal digital Input/Output
- Easy adjustment,can check the DI/DO terminal status by function code, can set the DI/DO logic level
- Multi-function, can allocate the DI/DO terminal function by function code.
| Part No. | US112-00R8 | US132-02R0 | US133-05R5 | |
Power Supply | Rated voltage | Single phase AC220V | Single phase AC220V | Tri-phase AC380V |
Voltage range | AC170V~253V 50/60Hz | AC323V~437V 50/60Hz | ||
Control | SVPWM control | |||
Internal function | Feedback | 2500 optical-electricity encoder | ||
Display,operation | 5 bit 7-section LED, 5 function keys | |||
Control mode | Position, speed, multi-section, point | |||
Brake | Built-in brake resistance, external resistance is optional | |||
Protection | Less pressure, over pressure, over load, over current, encoder error, range limit, over pulse etc. | |||
Digital input/output | Input | 5channels non-polarity digital input port, function self-definition | ||
output | 3channels non-polarity open-collector output, self-definition | |||
Position mode | Frequency type | pulse+direction，CW/CCW，A+B phase | ||
Max. frequency | 500KHz（difference pulse),200KHz（open collector） | |||
Gear ratio | 1~32767/1~32767 | |||
Speed mode | internal speed | Communication control，I/O terminal control | ||
point control | I/O terminal control | |||
Speed frequency response | 600Hz | |||
| Speed ratio | 1:5000 | |||
| Communication port | RS485 | |||
Environment | Temperature | working：0~45℃ Storage：-40~80℃ | ||
Humidity | Less 90%（non condensing） | |||

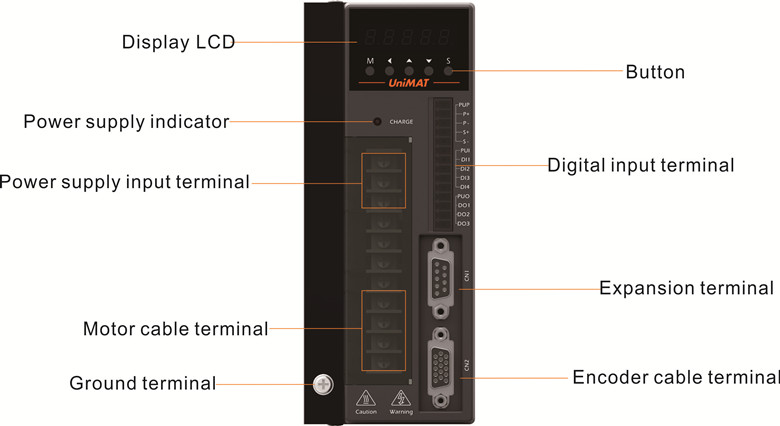

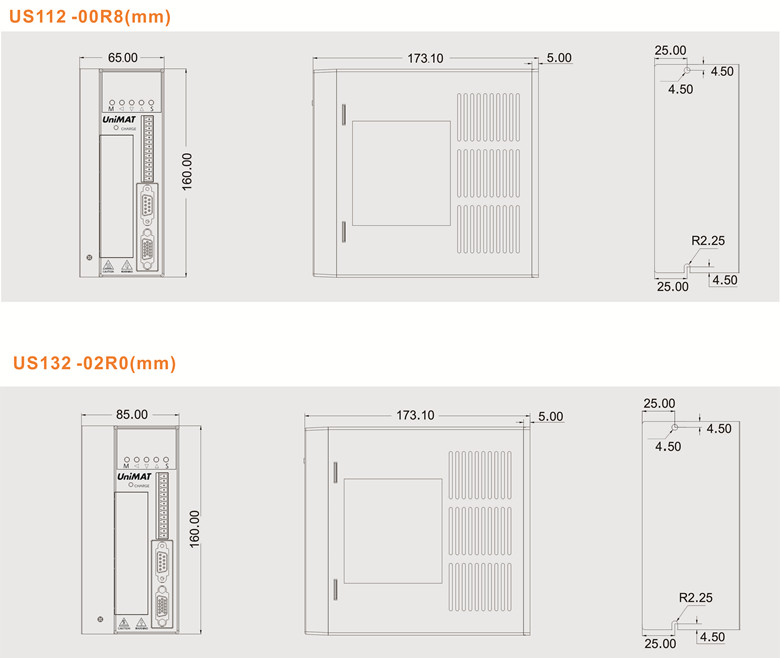

Size diagram (mm)
